Build a User Management App with Angular

This tutorial demonstrates how to build a basic user management app. The app authenticates and identifies the user, stores their profile information in the database, and allows the user to log in, update their profile details, and upload a profile photo. The app uses:

• Supabase Database - a Postgres database for storing your user data and Row Level Security so data is protected and users can only access their own information.
• Supabase Auth - users log in through magic links sent to their email (without having to set up passwords).
• Supabase Storage - users can upload a profile photo.

Project setup#

Before we start building we're going to set up our Database and API. This is as simple as starting a new Project in Supabase and then creating a "schema" inside the database.

Create a project#

1. Create a new project in the Supabase Dashboard.
2. Enter your project details.
3. Wait for the new database to launch.

Set up the database schema#

Now we are going to set up the database schema. We can use the "User Management Starter" quickstart in the SQL Editor, or you can just copy/paste the SQL from below and run it yourself.

Get the API Keys#

Now that you've created some database tables, you are ready to insert data using the auto-generated API. We just need to get the Project URL and anon key from the API settings.

1. Go to the API Settings page in the Dashboard.
2. Find your Project URL, anon, and service_role keys on this page.

Building the App#

Let's start building the Angular app from scratch.

Initialize an Angular app#

We can use the Angular CLI to initialize an app called supabase-angular:

1npx ng new supabase-angular --routing false --style css
2cd supabase-angular

Then let's install the only additional dependency: supabase-js

1npm install @supabase/supabase-js

And finally we want to save the environment variables in the environment.ts file. All we need are the API URL and the anon key that you copied earlier. These variables will be exposed on the browser, and that's completely fine since we have Row Level Security enabled on our Database.

export const environment = {
  production: false,
  supabaseUrl: 'YOUR_SUPABASE_URL',
  supabaseKey: 'YOUR_SUPABASE_KEY',
}

Now that we have the API credentials in place, let's create a SupabaseService with ng g s supabase to initialize the Supabase client and implement functions to communicate with the Supabase API.

import { Injectable } from '@angular/core'
import {
  AuthChangeEvent,
  AuthSession,
  createClient,
  Session,
  SupabaseClient,
  User,
} from '@supabase/supabase-js'
import { environment } from 'src/environments/environment'

export interface Profile {
  id?: string
  username: string
  website: string
  avatar_url: string
}

@Injectable({
  providedIn: 'root',
})
export class SupabaseService {
  private supabase: SupabaseClient
  _session: AuthSession | null = null

  constructor() {
    this.supabase = createClient(environment.supabaseUrl, environment.supabaseKey)
  }

  get session() {
    this.supabase.auth.getSession().then(({ data }) => {
      this._session = data.session
    })
    return this._session
  }

  profile(user: User) {
    return this.supabase
      .from('profiles')
      .select(`username, website, avatar_url`)
      .eq('id', user.id)
      .single()
  }

  authChanges(callback: (event: AuthChangeEvent, session: Session | null) => void) {
    return this.supabase.auth.onAuthStateChange(callback)
  }

  signIn(email: string) {
    return this.supabase.auth.signInWithOtp({ email })
  }

  signOut() {
    return this.supabase.auth.signOut()
  }

  updateProfile(profile: Profile) {
    const update = {
      ...profile,
      updated_at: new Date(),
    }

    return this.supabase.from('profiles').upsert(update)
  }

  downLoadImage(path: string) {
    return this.supabase.storage.from('avatars').download(path)
  }

  uploadAvatar(filePath: string, file: File) {
    return this.supabase.storage.from('avatars').upload(filePath, file)
  }
}

Optionally, update src/styles.css to style the app.

Set up a Login component#

Let's set up an Angular component to manage logins and sign ups. We'll use Magic Links, so users can sign in with their email without using passwords. Create an AuthComponent with ng g c auth Angular CLI command.

import { Component } from '@angular/core'
import { FormBuilder } from '@angular/forms'
import { SupabaseService } from '../supabase.service'

@Component({
  selector: 'app-auth',
  templateUrl: './auth.component.html',
  styleUrls: ['./auth.component.css'],
})
export class AuthComponent {
  loading = false

  signInForm = this.formBuilder.group({
    email: '',
  })

  constructor(
    private readonly supabase: SupabaseService,
    private readonly formBuilder: FormBuilder
  ) {}

  async onSubmit(): Promise<void> {
    try {
      this.loading = true
      const email = this.signInForm.value.email as string
      const { error } = await this.supabase.signIn(email)
      if (error) throw error
      alert('Check your email for the login link!')
    } catch (error) {
      if (error instanceof Error) {
        alert(error.message)
      }
    } finally {
      this.signInForm.reset()
      this.loading = false
    }
  }
}

<div class="row flex-center flex">
  <div class="col-6 form-widget" aria-live="polite">
    <h1 class="header">Supabase + Angular</h1>
    <p class="description">Sign in via magic link with your email below</p>
    <form [formGroup]="signInForm" (ngSubmit)="onSubmit()" class="form-widget">
      <div>
        <label for="email">Email</label>
        <input
          id="email"
          formControlName="email"
          class="inputField"
          type="email"
          placeholder="Your email"
        />
      </div>
      <div>
        <button type="submit" class="button block" [disabled]="loading">
          {{ loading ? 'Loading' : 'Send magic link' }}
        </button>
      </div>
    </form>
  </div>
</div>

Account page#

Users also need a way to edit their profile details and manage their accounts after signing in. Create an AccountComponent with the ng g c account Angular CLI command.

import { Component, Input, OnInit } from '@angular/core'
import { FormBuilder } from '@angular/forms'
import { AuthSession } from '@supabase/supabase-js'
import { Profile, SupabaseService } from '../supabase.service'

@Component({
  selector: 'app-account',
  templateUrl: './account.component.html',
  styleUrls: ['./account.component.css'],
})
export class AccountComponent implements OnInit {
  loading = false
  profile!: Profile

  @Input()
  session!: AuthSession

  updateProfileForm = this.formBuilder.group({
    username: '',
    website: '',
    avatar_url: '',
  })

  constructor(private readonly supabase: SupabaseService, private formBuilder: FormBuilder) {}

  async ngOnInit(): Promise<void> {
    await this.getProfile()

    const { username, website, avatar_url } = this.profile
    this.updateProfileForm.patchValue({
      username,
      website,
      avatar_url,
    })
  }

  async getProfile() {
    try {
      this.loading = true
      const { user } = this.session
      let { data: profile, error, status } = await this.supabase.profile(user)

      if (error && status !== 406) {
        throw error
      }

      if (profile) {
        this.profile = profile
      }
    } catch (error) {
      if (error instanceof Error) {
        alert(error.message)
      }
    } finally {
      this.loading = false
    }
  }

  async updateProfile(): Promise<void> {
    try {
      this.loading = true
      const { user } = this.session

      const username = this.updateProfileForm.value.username as string
      const website = this.updateProfileForm.value.website as string
      const avatar_url = this.updateProfileForm.value.avatar_url as string

      const { error } = await this.supabase.updateProfile({
        id: user.id,
        username,
        website,
        avatar_url,
      })
      if (error) throw error
    } catch (error) {
      if (error instanceof Error) {
        alert(error.message)
      }
    } finally {
      this.loading = false
    }
  }

  async signOut() {
    await this.supabase.signOut()
  }
}

<form [formGroup]="updateProfileForm" (ngSubmit)="updateProfile()" class="form-widget">
  <div>
    <label for="email">Email</label>
    <input id="email" type="text" [value]="session.user.email" disabled />
  </div>
  <div>
    <label for="username">Name</label>
    <input formControlName="username" id="username" type="text" />
  </div>
  <div>
    <label for="website">Website</label>
    <input formControlName="website" id="website" type="url" />
  </div>

  <div>
    <button type="submit" class="button primary block" [disabled]="loading">
      {{ loading ? 'Loading ...' : 'Update' }}
    </button>
  </div>

  <div>
    <button class="button block" (click)="signOut()">Sign Out</button>
  </div>
</form>

Launch!#

Now that we have all the components in place, let's update AppComponent:

import { Component, OnInit } from '@angular/core'
import { SupabaseService } from './supabase.service'

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
})
export class AppComponent implements OnInit {
  title = 'angular-user-management'

  session = this.supabase.session

  constructor(private readonly supabase: SupabaseService) {}

  ngOnInit() {
    this.supabase.authChanges((_, session) => (this.session = session))
  }
}

<div class="container" style="padding: 50px 0 100px 0">
  <app-account *ngIf="session; else auth" [session]="session"></app-account>
  <ng-template #auth>
    <app-auth></app-auth>
  </ng-template>
</div>

app.module.ts also needs to be modified to include the ReactiveFormsModule from the @angular/forms package.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'

import { AppComponent } from './app.component'
import { AuthComponent } from './auth/auth.component'
import { AccountComponent } from './account/account.component'
import { ReactiveFormsModule } from '@angular/forms'
import { AvatarComponent } from './avatar/avatar.component'

@NgModule({
  declarations: [AppComponent, AuthComponent, AccountComponent, AvatarComponent],
  imports: [BrowserModule, ReactiveFormsModule],
  providers: [],
  bootstrap: [AppComponent],
})
export class AppModule {}

Once that's done, run this in a terminal window:

1npm run start

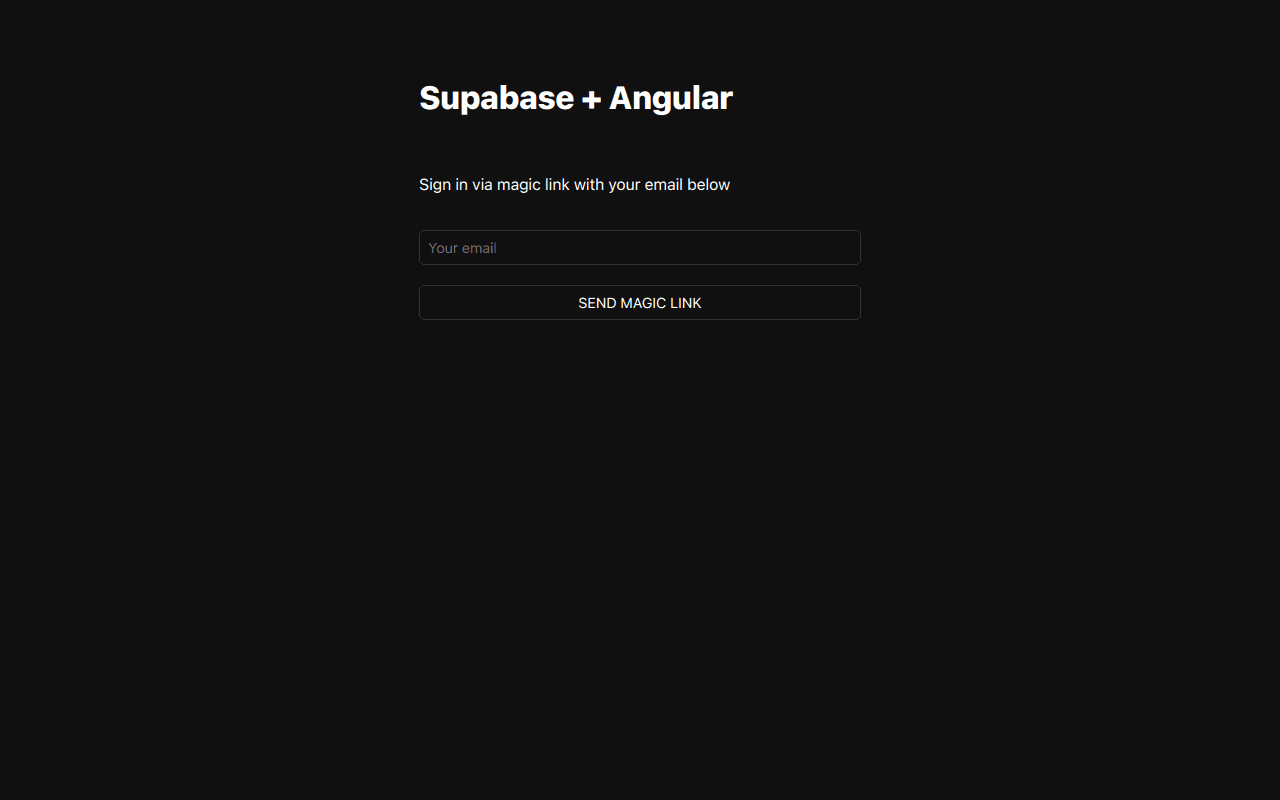

And then open the browser to localhost:4200 and you should see the completed app.

Bonus: Profile photos#

Every Supabase project is configured with Storage for managing large files like photos and videos.

Create an upload widget#

Let's create an avatar for the user so that they can upload a profile photo. Create an AvatarComponent with ng g c avatar Angular CLI command.

import { Component, EventEmitter, Input, Output } from '@angular/core'
import { SafeResourceUrl, DomSanitizer } from '@angular/platform-browser'
import { SupabaseService } from '../supabase.service'

@Component({
  selector: 'app-avatar',
  templateUrl: './avatar.component.html',
  styleUrls: ['./avatar.component.css'],
})
export class AvatarComponent {
  _avatarUrl: SafeResourceUrl | undefined
  uploading = false

  @Input()
  set avatarUrl(url: string | null) {
    if (url) {
      this.downloadImage(url)
    }
  }

  @Output() upload = new EventEmitter<string>()

  constructor(private readonly supabase: SupabaseService, private readonly dom: DomSanitizer) {}

  async downloadImage(path: string) {
    try {
      const { data } = await this.supabase.downLoadImage(path)
      if (data instanceof Blob) {
        this._avatarUrl = this.dom.bypassSecurityTrustResourceUrl(URL.createObjectURL(data))
      }
    } catch (error) {
      if (error instanceof Error) {
        console.error('Error downloading image: ', error.message)
      }
    }
  }

  async uploadAvatar(event: any) {
    try {
      this.uploading = true
      if (!event.target.files || event.target.files.length === 0) {
        throw new Error('You must select an image to upload.')
      }

      const file = event.target.files[0]
      const fileExt = file.name.split('.').pop()
      const filePath = `${Math.random()}.${fileExt}`

      await this.supabase.uploadAvatar(filePath, file)
      this.upload.emit(filePath)
    } catch (error) {
      if (error instanceof Error) {
        alert(error.message)
      }
    } finally {
      this.uploading = false
    }
  }
}

<div>
  <img
    *ngIf="_avatarUrl"
    [src]="_avatarUrl"
    alt="Avatar"
    class="avatar image"
    style="height: 150px; width: 150px"
  />
</div>
<div *ngIf="!_avatarUrl" class="avatar no-image" style="height: 150px; width: 150px"></div>
<div style="width: 150px">
  <label class="button primary block" for="single">
    {{ uploading ? 'Uploading ...' : 'Upload' }}
  </label>
  <input
    style="visibility: hidden;position: absolute"
    type="file"
    id="single"
    accept="image/*"
    (change)="uploadAvatar($event)"
    [disabled]="uploading"
  />
</div>

Add the new widget#

And then we can add the widget on top of the AccountComponent html template:

<form [formGroup]="updateProfileForm" (ngSubmit)="updateProfile()" class="form-widget">
  <app-avatar [avatarUrl]="this.avatarUrl" (upload)="updateAvatar($event)"> </app-avatar>
  <!-- input fields -->
</form>

And add an updateAvatar function along with an avatarUrl getter to the AccountComponent typescript file:

@Component({
  selector: 'app-account',
  templateUrl: './account.component.html',
  styleUrls: ['./account.component.css'],
})
export class AccountComponent implements OnInit {
  // ...
  get avatarUrl() {
    return this.updateProfileForm.value.avatar_url as string
  }

  async updateAvatar(event: string): Promise<void> {
    this.updateProfileForm.patchValue({
      avatar_url: event,
    })
    await this.updateProfile()
  }
  // ...
}

Storage management#

If you upload additional profile photos, they'll accumulate in the avatars bucket because of their random names with only the latest being referenced from public.profiles and the older versions getting orphaned.

To automatically remove obsolete storage objects, extend the database triggers. Note that it is not sufficient to delete the objects from the storage.objects table because that would orphan and leak the actual storage objects in the S3 backend. Instead, invoke the storage API within Postgres via the http extension.

Enable the http extension for the extensions schema in the Dashboard. Then, define the following SQL functions in the SQL Editor to delete storage objects via the API:

create or replace function delete_storage_object(bucket text, object text, out status int, out content text)
returns record
language 'plpgsql'
security definer
as $$
declare
  project_url text := '<YOURPROJECTURL>';
  service_role_key text := '<YOURSERVICEROLEKEY>'; --  full access needed
  url text := project_url||'/storage/v1/object/'||bucket||'/'||object;
begin
  select
      into status, content
           result.status::int, result.content::text
      FROM extensions.http((
    'DELETE',
    url,
    ARRAY[extensions.http_header('authorization','Bearer '||service_role_key)],
    NULL,
    NULL)::extensions.http_request) as result;
end;
$$;

create or replace function delete_avatar(avatar_url text, out status int, out content text)
returns record
language 'plpgsql'
security definer
as $$
begin
  select
      into status, content
           result.status, result.content
      from public.delete_storage_object('avatars', avatar_url) as result;
end;
$$;

Next, add a trigger that removes any obsolete avatar whenever the profile is updated or deleted:

create or replace function delete_old_avatar()
returns trigger
language 'plpgsql'
security definer
as $$
declare
  status int;
  content text;
begin
  if coalesce(old.avatar_url, '') <> ''
      and (tg_op = 'DELETE' or (old.avatar_url <> new.avatar_url)) then
    select
      into status, content
      result.status, result.content
      from public.delete_avatar(old.avatar_url) as result;
    if status <> 200 then
      raise warning 'Could not delete avatar: % %', status, content;
    end if;
  end if;
  if tg_op = 'DELETE' then
    return old;
  end if;
  return new;
end;
$$;

create trigger before_profile_changes
  before update of avatar_url or delete on public.profiles
  for each row execute function public.delete_old_avatar();

Finally, delete the public.profile row before a user is deleted. If this step is omitted, you won't be able to delete users without first manually deleting their avatar image.

create or replace function delete_old_profile()
returns trigger
language 'plpgsql'
security definer
as $$
begin
  delete from public.profiles where id = old.id;
  return old;
end;
$$;

create trigger before_delete_user
  before delete on auth.users
  for each row execute function public.delete_old_profile();

At this stage you have a fully functional application!
